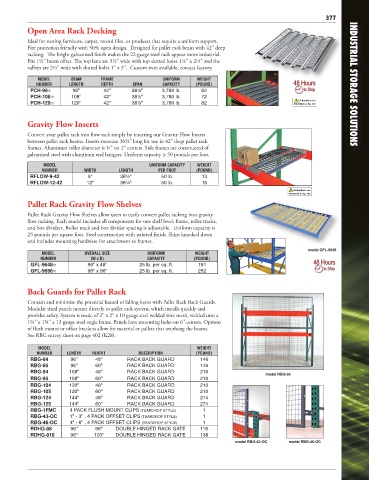

377
Open Area Rack Decking

Ideal for storing furniture, carpet, record files, or products that require a uniform support.
Fire protection friendly with 50% open design. Designed for pallet rack beam with 42" deep
racking. The bright galvanized finish makes the 22 gauge steel rack appear more industrial.
Fits 1½" beam offset. The top hats are 3½" wide with top slotted holes 1¼" x 2½" and the
valleys are 2½" wide with slotted holes 1" x 3". Custom sizes available, contact factory.

MODEL BEAM FRAME UNIFORM WEIGHT
NUMBER LENGTH DEPTH SPAN CAPACITY (POUND) INDUSTRIAL STORAGE SOLUTIONS
PCH-96� 96" 42" 38½" 3,780 lb. 62
PCH-108� 108" 42" 38½" 3,780 lb. 72
CA Residents see
PCH-120� 120" 42" 38½" 3,780 lb. 82 WARNING A, Pg. 459

Gravity Flow Inserts

Convert your pallet rack into flow rack simply by inserting our Gravity Flow Inserts
between pallet rack beams. Inserts measure 36⅝" long for use in 42" deep pallet rack
frames. Aluminum roller diameter is ¾" on 2" centers. Side frames are constructed of
galvanized steel with aluminum end hangers. Uniform capacity is 50 pounds per foot.
MODEL UNIFORM CAPACITY WEIGHT
NUMBER WIDTH LENGTH PER FOOT (POUND)
RFLOW-9-42 9" 36 /8" 50 lb. 13
5
RFLOW-12-42 12" 36 /8" 50 lb. 15
5
CA Residents see
WARNING A, Pg. 459
Pallet Rack Gravity Flow Shelves
Pallet Rack Gravity Flow Shelves allow users to easily convert pallet racking into gravity
flow racking. Each model includes all components for one shelf level: frame, roller tracks,
and box dividers. Roller track and box divider spacing is adjustable. Uniform capacity is
25 pounds per square foot. Steel construction with painted finish. Ships knocked down
and includes mounting hardware for attachment to frames.
model GFL-9648
MODEL OVERALL SIZE UNIFORM WEIGHT
NUMBER (W x D) CAPACITY (POUND)
GFL-9648� 96" x 48" 25 lb. per sq. ft. 181
GFL-9696� 96" x 96" 25 lb. per sq. ft. 252

Back Guards for Pallet Rack

Contain and minimize the potential hazard of falling items with Pallet Rack Back Guards.
Modular sized panels mount directly to pallet rack system, which installs quickly and
provides safety. System is made of 2" x 2" x 10 gauge steel welded wire mesh, welded into a
1¼" x 1¼" x 13 gauge steel angle frame. Panels have mounting holes on 6" centers. Options
of flush mount or offset brackets allow for material or pallets that overhang the beams.
See RBG survey sheet on page 402 (K28).
MODEL WEIGHT
NUMBER LENGTH HEIGHT DESCRIPTION (POUND)
RBG-84 96" 48" RACK BACK GUARD 146
RBG-85 96" 60" RACK BACK GUARD 146
RBG-94 108" 48" RACK BACK GUARD 210 model RBG-95
RBG-95 108" 60" RACK BACK GUARD 210
RBG-104 120" 48" RACK BACK GUARD 210
RBG-105 120" 60" RACK BACK GUARD 210
RBG-124 144" 48" RACK BACK GUARD 274
RBG-125 144" 60" RACK BACK GUARD 274
RBG-1FMC 4 PACK FLUSH MOUNT CLIPS (TEARDROP STYLE) 1
RBG-43-OC 1" - 3" , 4 PACK OFFSET CLIPS (TEARDROP STYLE) 1
RBG-46-OC 4" - 6" , 4 PACK OFFSET CLIPS (TEARDROP STYLE) 1
RDHG-88 96" 96" DOUBLE HINGED RACK GATE 116
RDHG-810 96" 120" DOUBLE HINGED RACK GATE 138
model RBG-43-OC model RBG-46-OC
