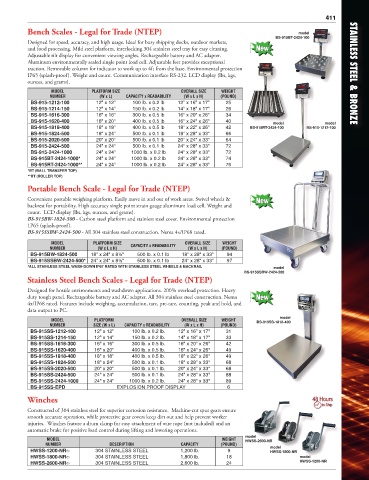

Page 8 - Stainless Steel & Bronze Products

411

Bench Scales - Legal for Trade (NTEP) model
BS-915BT-2424-100
Designed for speed, accuracy, and high usage. Ideal for busy shipping docks, outdoor markets,
and food processing. Mild steel platform, interlocking 304 stainless steel tray for easy cleaning. New
Adjustable tilt display for convenient viewing angles. Rechargeable battery and AC adapter.
Aluminum environmentally sealed single point load cell. Adjustable feet provides exceptional
traction. Removable column for indicator to work up to 4ft from the base. Environmental protection
IP65 (splash-proof). Weight and count. Communication interface RS-232. LCD display (lbs, kgs, STAINLESS STEEL & BRONZE
ounces, and grams).
MODEL PLATFORM SIZE OVERALL SIZE WEIGHT
NUMBER (W x L) CAPACITY x READABILITY (W x L x H) (POUND)
BS-915-1212-100 12" x 12" 100 lb. x 0.2 lb 12" x 16" x 17" 25
BS-915-1214-150 12" x 14" 150 lb. x 0.2 lb 14" x 18" x 17" 26
BS-915-1616-300 16" x 16" 300 lb. x 0.5 lb 16" x 20" x 26" 34
BS-915-1620-400 16" x 20" 400 lb. x 0.5 lb 16" x 24" x 26" 40 model model
BS-915-1818-400 18" x 18" 400 lb. x 0.5 lb 18" x 22" x 26" 42 BS-915RT-2424-100 BS-915-1212-100
BS-915-1824-500 18" x 24" 500 lb. x 0.1 lb 18" x 28" x 33" 66
BS-915-2020-500 20" x 20" 500 lb. x 0.1 lb 20" x 24" x 33" 64
BS-915-2424-500 24" x 24" 500 lb. x 0.1 lb 24" x 28" x 33" 72
BS-915-2424-1000 24" x 24" 1000 lb. x 0.2 lb 24" x 28" x 33" 72
BS-915BT-2424-1000* 24" x 24" 1000 lb. x 0.2 lb 24" x 28" x 33" 74
BS-915RT-2424-1000** 24" x 24" 1000 lb. x 0.2 lb 24" x 28" x 33" 76
*BT (BALL TRANSFER TOP)
**RT (ROLLER TOP)
Portable Bench Scale - Legal for Trade (NTEP)

Convenient portable weighing platform. Easily move in and out of work areas. Swivel wheels & New
backrest for portability. High accuracy single point strain gauge aluminum load cell. Weight and
count. LCD display (lbs, kgs, ounces, and grams).
BS-915BW-1824-500 - Carbon steel platform and stainless steel cover. Environmental protection
1P65 (splash-proof).
BS-915SSBW-2424-500 - All 304 stainless steel construction. Nema 4x/IP68 rated.
MODEL PLATFORM SIZE OVERALL SIZE WEIGHT
NUMBER (W x L x H) CAPACITY x READABILITY (W x L x H) (POUND)
BS-915BW-1824-500 18" x 24" x 8½" 500 lb. x 0.1 lb 18" x 28" x 33" 94
BS-915SSBW-2424-500* 24" x 24" x 8½" 500 lb. x 0.1 lb 24" x 28" x 33" 97
*ALL STAINLESS STEEL WASH-DOWN IP67 RATED WITH STAINLESS STEEL WHEELS & BACKRAIL model
BS-915SSBW-2424-500
Stainless Steel Bench Scales - Legal for Trade (NTEP)
Designed for hostile environments and washdown applications. 200% overload protection. Heavy
duty tough panel. Rechargeable battery and AC adapter. All 304 stainless steel construction. Nema New
4x/IP68 rated. Features include weighing, accumulation, tare, pre-tare, counting, peak and hold, and
data output to PC.
model
MODEL PLATFORM OVERALL SIZE WEIGHT BS-915SS-1818-400
NUMBER SIZE (W x L) CAPACITY x READABILITY (W x L x H) (POUND)
BS-915SS-1212-100 12" x 12" 100 lb. x 0.2 lb. 12" x 16" x 17" 31
BS-915SS-1214-150 12" x 14" 150 lb. x 0.2 lb. 14" x 18" x 17" 33
BS-915SS-1616-300 16" x 16" 300 lb. x 0.5 lb. 16" x 20" x 26" 42
BS-915SS-1620-400 16" x 20" 400 lb. x 0.5 lb. 16" x 24" x 26" 49
BS-915SS-1818-400 18" x 18" 400 lb. x 0.5 lb. 18" x 22" x 26" 49
BS-915SS-1824-500 18" x 24" 500 lb. x 0.1 lb. 18" x 28" x 33" 68
BS-915SS-2020-500 20" x 20" 500 lb. x 0.1 lb. 20" x 24" x 33" 68
BS-915SS-2424-500 24" x 24" 500 lb. x 0.1 lb. 24" x 28" x 33" 88
BS-915SS-2424-1000 24" x 24" 1000 lb. x 0.2 lb. 24" x 28" x 33" 89
BS-915SS-EPD EXPLOSION PROOF DISPLAY 6
Winches

Constructed of 304 stainless steel for superior corrosion resistance. Machine-cut spur gears ensure
smooth accurate operation, while protective gear covers keep dirt out and help prevent worker
injuries. Winches feature a drum clamp for easy attachment of wire rope (not included) and an
automatic brake for positive load control during lifting and lowering operations.
model
MODEL WEIGHT HWSS-2600-NR
NUMBER DESCRIPTION CAPACITY (POUND)
model
HWSS-1200-NR 304 STAINLESS STEEL 1,200 lb. 9 HWSS-1800-NR
HWSS-1800-NR 304 STAINLESS STEEL 1,800 lb. 18 model
HWSS-1200-NR
HWSS-2600-NR 304 STAINLESS STEEL 2,600 lb. 24
