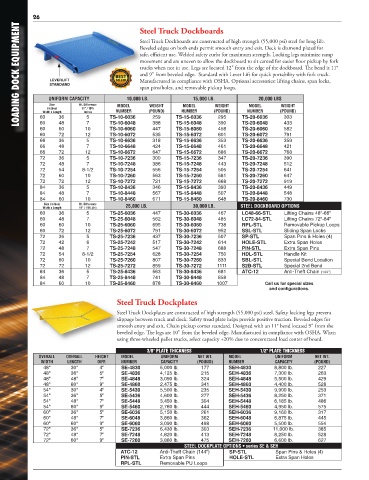

26                                 Steel Truck Dockboards
       LOADING DOCK EQUIPMENT  UNIFORM CAPACITY  10,000 LB.     15,000 LB.            20,000 LBS


                                               Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life.
                                               Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for
                                               safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp
                                               movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork
                                               trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11°
                                               and 9" from beveled edge.  Standard with Lever Lift for quick portability with fork truck.
                 LEVERLIFT
                                               Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks,
                 STANDARD
                                               span pins/holes, and removable pickup loops.
                                       MODEL
                 Size
                                                                                             WEIGHT
                                                             MODEL
                                                  WEIGHT
                                                                                  MODEL
                                                                       WEIGHT
                            11° / 19%
                (Inches)
                                                                                  NUMBER
                                       NUMBER
                                                            NUMBER
                            Inches
              60
                                                                                              303
                                                   259
                                                                        295
                    36
                             5
                                     TS-10-6048
                                                                                TS-20-6048
                                                          TS-15-6048
                                                                        390
                                                                                              433
                    48
              60
                                                   388
                             7
                                                                                TS-20-6060
                                                          TS-15-6060
                                     TS-10-6060
                                                   447
                    60
                             10
                                                                                              582
                                                                        458
              60 Width x Length   Ht. Difference  TS-10-6036  (POUND)  TS-15-6036  (POUND)  TS-20-6036  (POUND)
              60    72       12      TS-10-6072    535    TS-15-6072    601     TS-20-6072    791
              66    36       5       TS-10-6636    318    TS-15-6636    353     TS-20-6636    359
              66    48       7       TS-10-6648    424    TS-15-6648    461     TS-20-6648    421
              66    72       12      TS-10-6672    647    TS-15-6672    686     TS-20-6672    768
              72    36       5       TS-10-7236    300    TS-15-7236    347     TS-20-7236    390
              72    48       7       TS-10-7248    386    TS-15-7248    443     TS-20-7248    512
              72    54      8-1/2    TS-10-7254    556    TS-15-7254    505     TS-20-7254    641
              72    60       10      TS-10-7260    563    TS-15-7260    581     TS-20-7260    647
              72    72       12      TS-10-7272    721    TS-15-7272    668     TS-20-7272    919
              84    36       5       TS-10-8436    346    TS-15-8436    393     TS-20-8436    449
              84    48       7       TS-10-8448    567    TS-15-8448    507     TS-20-8448    548
              84    60       10      TS-10-8460    671    TS-15-8460    648     TS-20-8460    730
               Size (inches)  Ht. Difference
               Width x Length   11° / 19% (In)  25,000 LB.      30,000 LB.      STEEL DOCKBOARD OPTIONS
              60    36       5       TS-25-6036    447    TS-30-6036    467     LC48-66-STL   Lifting Chains 48"-66"
              60    48       7       TS-25-6048    562    TS-30-6048    485     LC72-84-STL   Lifting Chains 72"-84"
              60    60       10      TS-25-6060    695    TS-30-6060    738     RPL-STL       Removable Pickup Loops
              60    72       12      TS-25-6072    791    TS-30-6072    952     SSL-STL       Sliding Span Locks
              72    36       5       TS-25-7236    437    TS-30-7236    507     SP-STL        Span Pins & Holes (4)
              72    42       6       TS-25-7242    517    TS-30-7242    614     HOLE-STL      Extra Span Holes
              72    48       7       TS-25-7248    547    TS-30-7248    688     PIN-STL       Extra Span Pins
              72    54      8-1/2    TS-25-7254    628    TS-30-7254    750     HDL-STL       Handle Kit
              72    60       10      TS-25-7260    807    TS-30-7260    833     SBL-STL       Special Bend Location
              72    72       12      TS-25-7272    859    TS-30-7272    1111    S2B-STL       Special 2nd Bend
              84    36       5       TS-25-8436    563    TS-30-8436    681     ATC-12        Anti-Theft Chain (144")
              84    48       7       TS-25-8448    741    TS-30-8448    858
              84    60       10      TS-25-8460    878    TS-30-8460    1007            Call us for special sizes
                                                                                         and configurations.
                                       Steel Truck Dockplates
                                       Steel Truck Dockplates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent
                                       slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for
                                       smooth entry and exit. Chain pickup comes standard. Designed with an 11° bend located 9" from the
                                       beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When
                                       using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.
                                                 3/8" PLATE THICKNESS                 1/2" PLATE THICKNESS
              OVERALL  OVERALL  HEIGHT   MODEL        UNIFORM     NET WT.   MODEL          UNIFORM      NET WT.
              WIDTH    LENGTH    DIFF.   NUMBER       CAPACITY   (POUND)    NUMBER         CAPACITY     (POUND)
               48"      30"       4"     SE-4830     5,000 lb.     177      SEH-4830       8,800 lb.     227
               48"      36"       5"     SE-4836     4,125 lb.     215      SEH-4836       7,300 lb.     263
               48"      48"       7"     SE-4848     3,090 lb.     324      SEH-4848       5,500 lb.     429
               48"      60"       9"     SE-4860     2,475 lb.     341      SEH-4860       4,400 lb.     528
               54"      30"       4"     SE-5430     5,500 lb.     235      SEH-5430       9,900 lb.     253
               54"      36"       5"     SE-5436     4,600 lb.     277      SEH-5436       8,250 lb.     371
               54"      48"       7"     SE-5448     3,450 lb.     304      SEH-5448       6,185 lb.     486
               54"      60"       9"     SE-5460     2,760 lb.     444      SEH-5460       4,950 lb.     575
               60"      36"       5"     SE-6036     5,150 lb.     261      SEH-6036       9,160 lb.     317
               60"      48"       7"     SE-6048     3,860 lb.     362      SEH-6048       6,875 lb.     445
               60"      60"       9"     SE-6060     3,090 lb.     498      SEH-6060       5,500 lb.     554
               72"      36"       5"     SE-7236     6,430 lb.     303      SEH-7236      11,000 lb.     385
               72"      48"       7"     SE-7248     4,820 lb.     413      SEH-7248       8,250 lb.     528
               72"      60"       9"     SE-7260     3,860 lb.     475      SEH-7260       6,600 lb.     627
                                                             STEEL DOCKPLATE OPTIONS • series SE & SEH
                                        ATC-12       Anti-Theft Chain (144")  SP-STL       Span Pins & Holes (4)
                                        PIN-STL      Extra Span Pins        HOLE-STL       Extra Span Holes
                                        RPL-STL      Removable PU Loops
