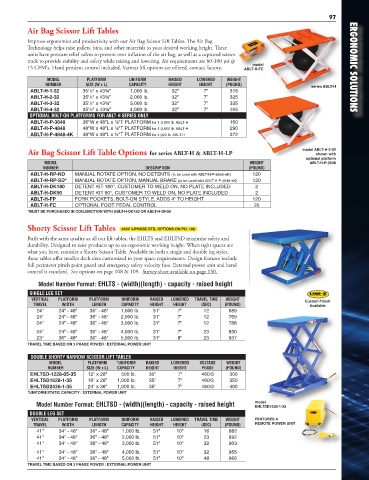

97
Air Bag Scissor Lift Tables

Improve ergonomics and productivity with our Air Bag Scissor Lift Tables. The Air Bag
Technology helps raise pallets, bins, and other materials to your desired working height. These
units have pressure relief valves to prevent over inflation of the air bag, as well as a captured scissor
track to provide stability and safety while raising and lowering. Air requirements are 80-100 psi @
model
15 CFM's. Hand pendent control included. Various lift options are offered, contact factory. ABLT-H-FC ERGONOMIC SOLUTIONS
MODEL PLATFORM UNIFORM RAISED LOWERED WEIGHT
NUMBER SIZE (W x L) CAPACITY HEIGHT HEIGHT (POUND) series ABLT-H
ABLT-H-1-32 35 /5" x 43¾" 1,000 lb. 32" 7" 315
1
ABLT-H-2-32 35 /5" x 43¾" 2,000 lb. 32" 7" 325
1
ABLT-H-3-32 35 /5" x 43¾" 3,000 lb. 32" 7" 335
1
ABLT-H-4-32 35 /5" x 43¾" 4,000 lb. 32" 7" 405
1
OPTIONAL BOLT-ON PLATFORMS FOR ABLT-H SERIES ONLY
ABLT-H-P-3648 36"W x 48"L x ¼"T PLATFORM for 1-3,000 lb. ABLT-H 160
ABLT-H-P-4848 48"W x 48"L x ¼"T PLATFORM for 1-3,000 lb. ABLT-H 290
ABLT-H-P-4848-4K 48"W x 48"L x ½"T PLATFORM for 4,000 lb. ABLT-H 372
model ABLT-H-2-32
Air Bag Scissor Lift Table Options for series ABLT-H & ABLT-H-LP shown with
optional platform
MODEL WEIGHT ABLT-H-P-3648
NUMBER DESCRIPTION (POUND)
ABLT-H-RP-ND MANUAL ROTATE OPTION, NO DETENTS (to be used with ABLT-H-P-4848-4K) 120
ABLT-H-RP-SD* MANUAL ROTATE OPTION, MANUAL BRAKE (to be used with ABLT-H-P-4848-4K) 120
ABLT-H-DK180 DETENT KIT 180°, CUSTOMER TO WELD ON, NO PLATE INCLUDED 2
ABLT-H-DK90 DETENT KIT 90°, CUSTOMER TO WELD ON, NO PLATE INCLUDED 2
ABLT-H-FP FORK POCKETS, BOLT-ON STYLE, ADDS 4" TO HEIGHT 120
ABLT-H-FC OPTIONAL FOOT PEDAL CONTROL 20
*MUST BE PURCHASED IN CONJUNCTION WITH ABLT-H-DK180 OR ABLT-H-DK90

Shorty Scissor Lift Tables 460V 3-PHASE STD, OPTIONS ON PG. 108
Built with the same quality as all our lift tables, the EHLTS and EHLTSD maximize safety and
durability. Designed to raise products up to an ergonomic working height. When tight spaces are
what you have, consider a Shorty Scissor Table. Available in both a single and double leg styles,
these tables offer smaller deck sizes customized to your space requirements. Design features include
full perimeter pinch point guard and emergency safety velocity fuse. External power unit and hand
control is standard. See options on page 108 & 109. Survey sheet available on page 150.
Model Number Format: EHLTS - (width)(length) - capacity - raised height
SINGLE LEG SET
VERTICAL PLATFORM PLATFORM UNIFORM RAISED LOWERED TRAVEL TIME WEIGHT Custom Finish
TRAVEL WIDTH LENGTH CAPACITY HEIGHT HEIGHT (SEC) (POUND) Available
24" 24" - 48" 36" - 48" 1,000 lb. 31" 7" 12 689
24" 24" - 48" 36" - 48" 2,000 lb. 31" 7" 12 769
24" 24" - 48" 36" - 48" 3,000 lb. 31" 7" 12 788
24" 24" - 48" 36" - 48" 4,000 lb. 31" 7" 23 850
23" 36" - 48" 36" - 48" 5,000 lb. 31" 8" 23 937
TRAVEL TIME BASED ON 3 PHASE POWER / EXTERNAL POWER UNIT
DOUBLE SHORTY NARROW SCISSOR LIFT TABLES
MODEL PLATFORM *UNIFORM RAISED LOWERED VOLTAGE WEIGHT
NUMBER SIZE (W x L) CAPACITY HEIGHT HEIGHT PHASE (POUND)
EHLTSD-1228-05-35 12" x 28" 500 lb. 35" 7" 460/3 300
EHLTSD1628-1-35 16" x 28" 1,000 lb. 35" 7" 460/3 350
EHLTSD2436-1-35 24" x 36" 1,000 lb. 35" 7" 460/3 400
*UNIFORM STATIC CAPACITY / EXTERNAL POWER UNIT
Model Number Format: EHLTSD - (width)(length) - capacity - raised height model
EHLTSD1628-1-35
DOUBLE LEG SET
VERTICAL PLATFORM PLATFORM UNIFORM RAISED LOWERED TRAVEL TIME WEIGHT FEATURES A
TRAVEL WIDTH LENGTH CAPACITY HEIGHT HEIGHT (SEC) (POUND) REMOTE POWER UNIT
41" 34" - 48" 36" - 48" 1,000 lb. 51" 10" 16 882
41" 34" - 48" 36" - 48" 2,000 lb. 51" 10" 23 892
41" 34" - 48" 36" - 48" 3,000 lb. 51" 10" 32 903
41" 34" - 48" 36" - 48" 4,000 lb. 51" 10" 32 955
41" 34" - 48" 36" - 48" 5,000 lb. 51" 10" 48 966
TRAVEL TIME BASED ON 3 PHASE POWER / EXTERNAL POWER UNIT
